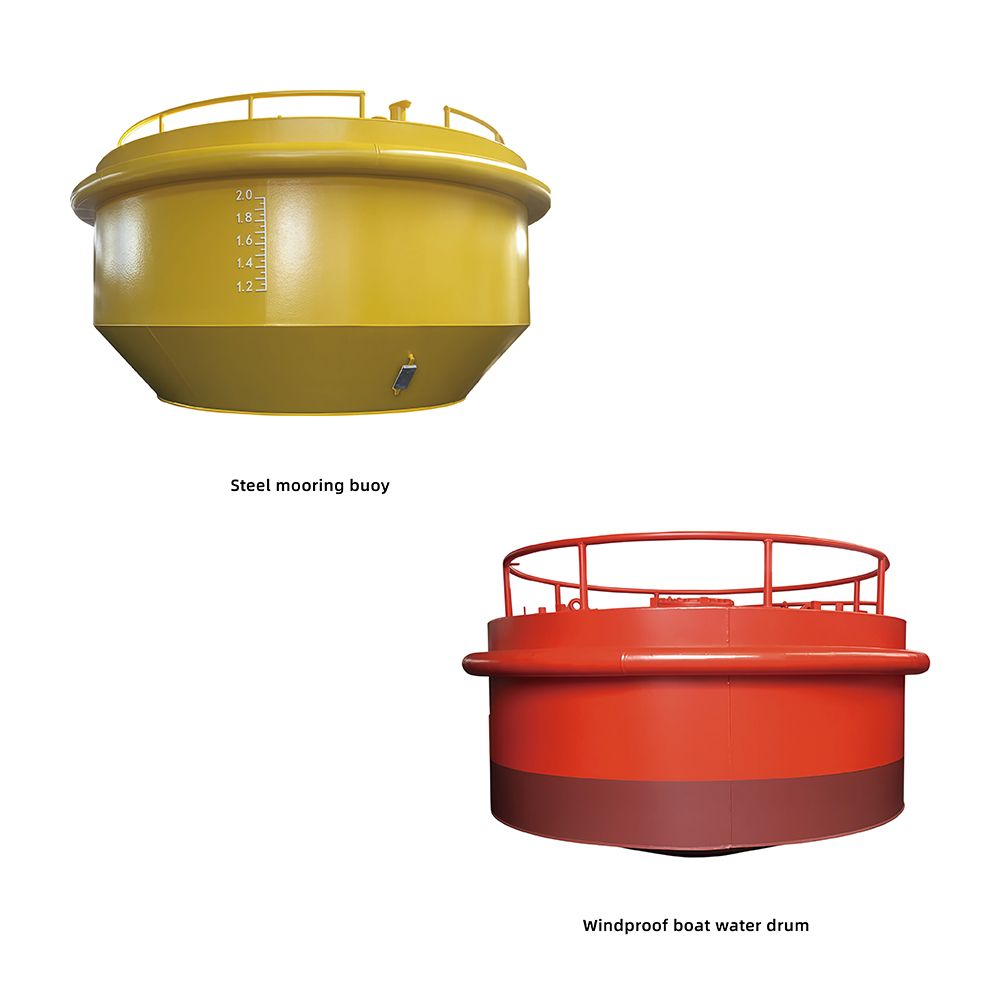

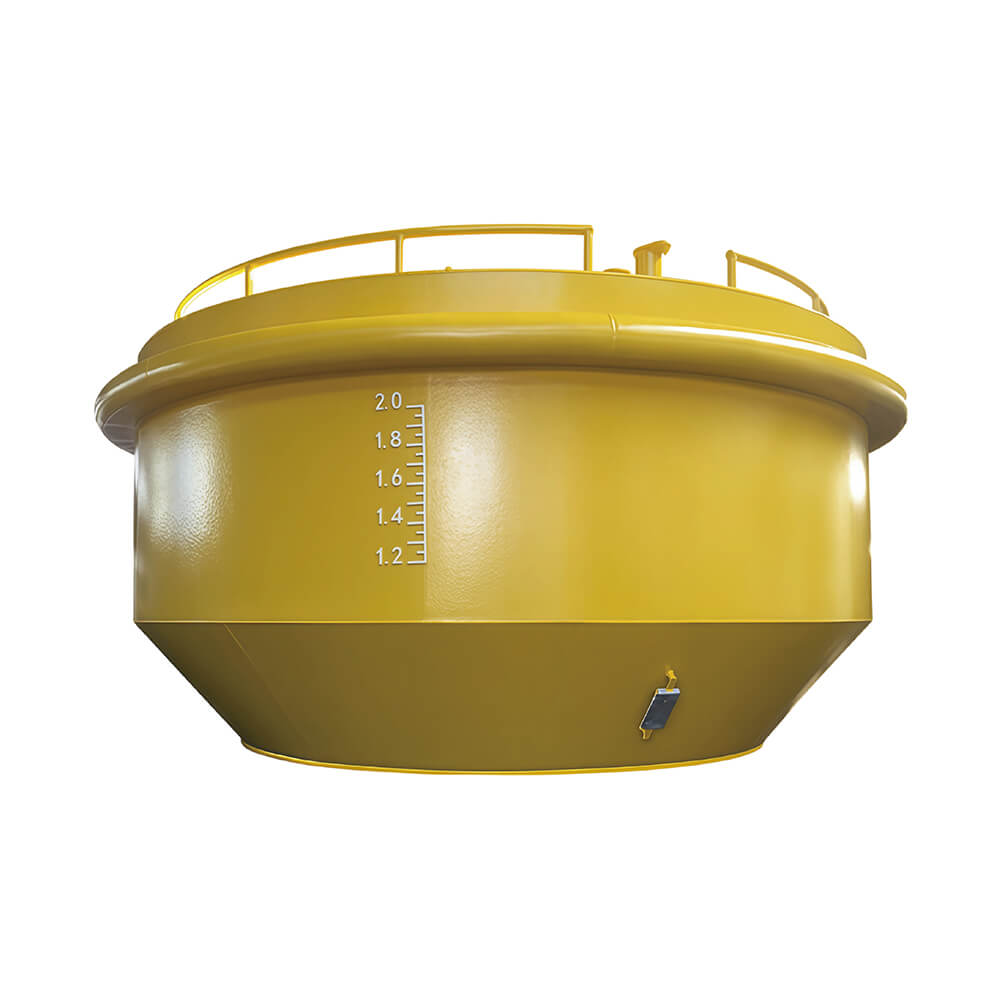

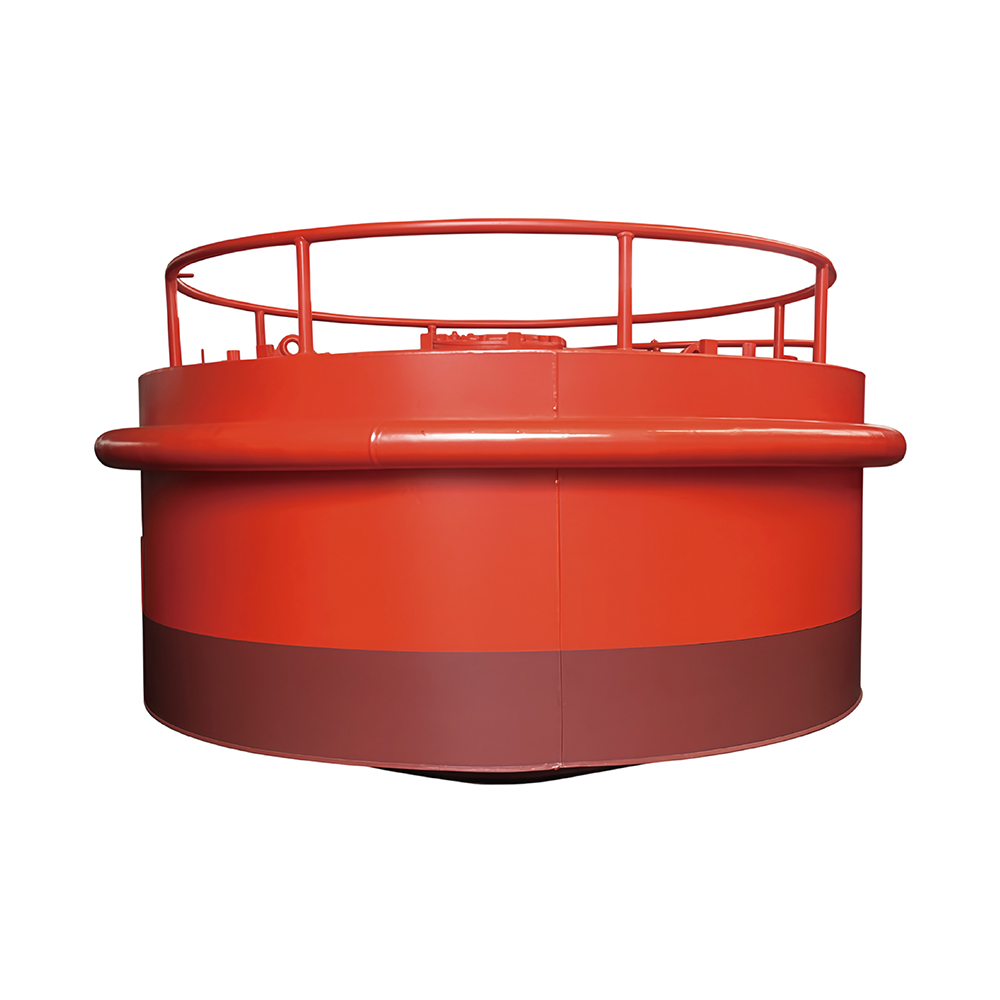

XF Steel Mooring Buoys
Steel mooring buoys provide a floating connection point for vessel mooring lines.
- Models: XF-2.0 to XF-8.0 (7 models)
- Body diameter: 2.0–8.0 m
- Buoyancy (excluding anchor chain): 3–40.3 t
- Anchor chain diameter: 62–122 mm
Send Inquiry
Product Description
XF-series steel mooring buoys, with body dimensions, buoyancy and fitting sizes listed below.

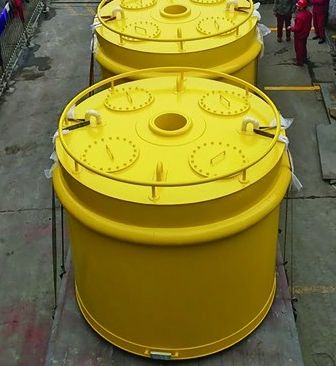

Body & Fittings
Model Specifications
Scroll horizontally to view all columns on a small screen.
| Model | Buoyancy, excluding anchor chain (t) | Diameter * height (m) | Anchor chain diameter (mm) | Lifting ring (mm) | Mooring line shackle (mm) |
|---|---|---|---|---|---|
| XF-2.0 | 3 | φ2.0*1.74 | φ62 | φ45 | φ90 |
| XF-2.6 | 6 | φ2.6*2.27 | φ70 | φ45 | φ90 |
| XF-3.6 | 19 | φ3.6*2.14 | φ90-122 | φ50 | φ140 |
| XF-5.0 | 28.5 | φ5.0*3.4 | φ122 | φ60 | φ140 |
| XF-5.5 | 31.2 | φ5.5*3.0 | φ122 | — | — |
| XF-6.0 | 34.2 | φ6.0*3.2 | φ122 | — | — |
| XF-8.0 | 40.3 | φ8.0*2.46 | φ122 | φ100 | φ170 |
Buoyancy excludes anchor chain. — = fitting size not provided in the catalogue.

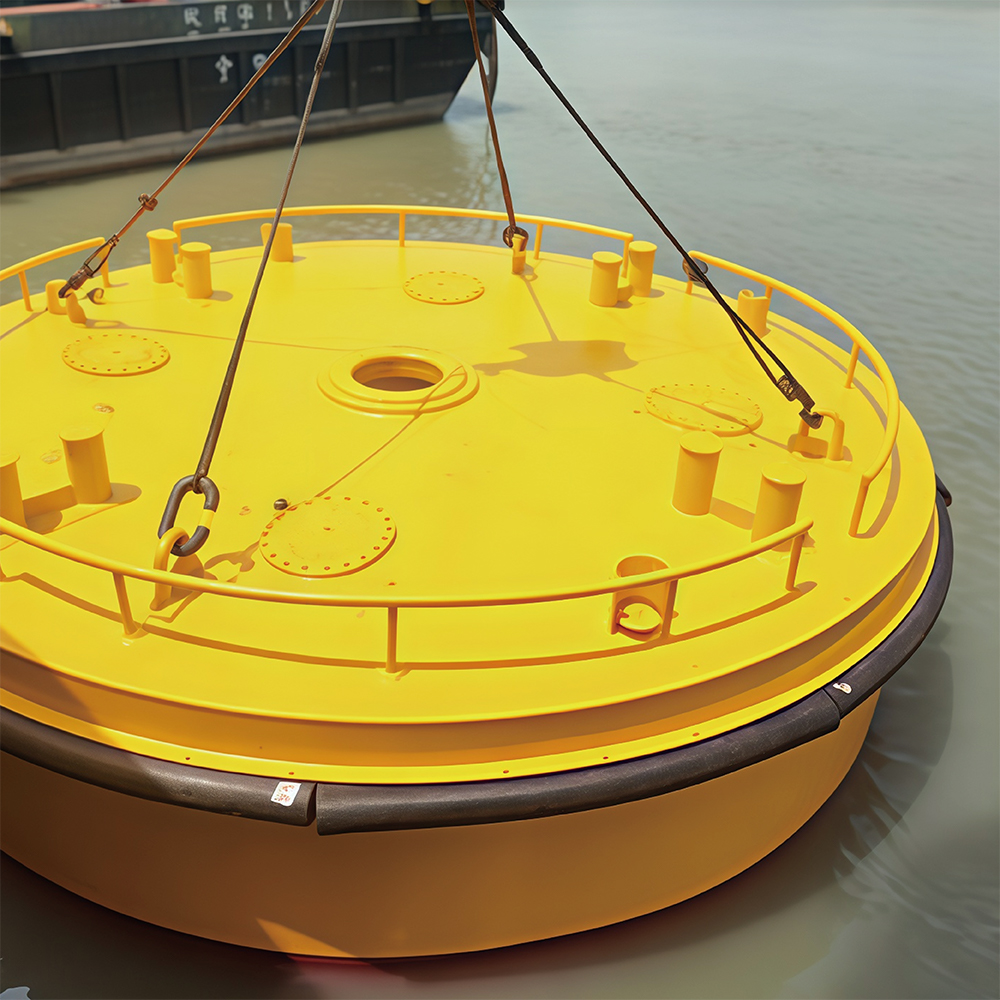

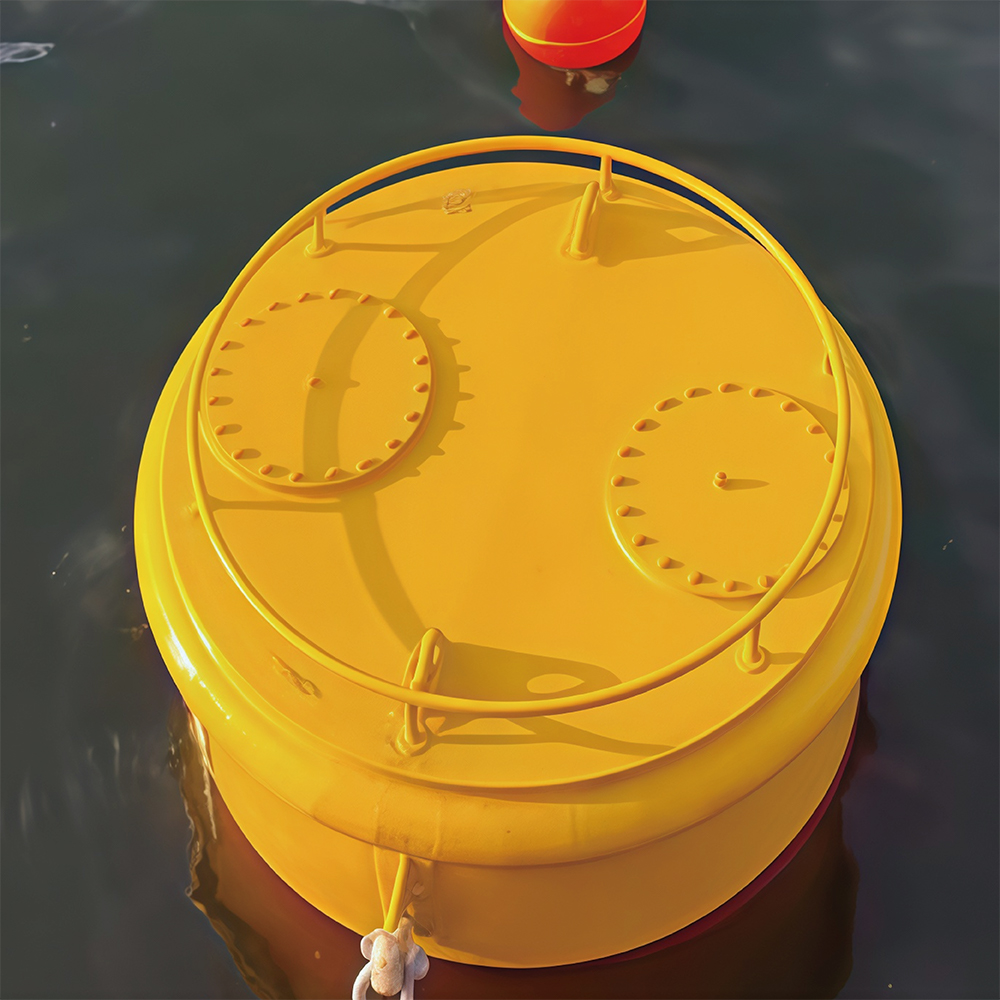

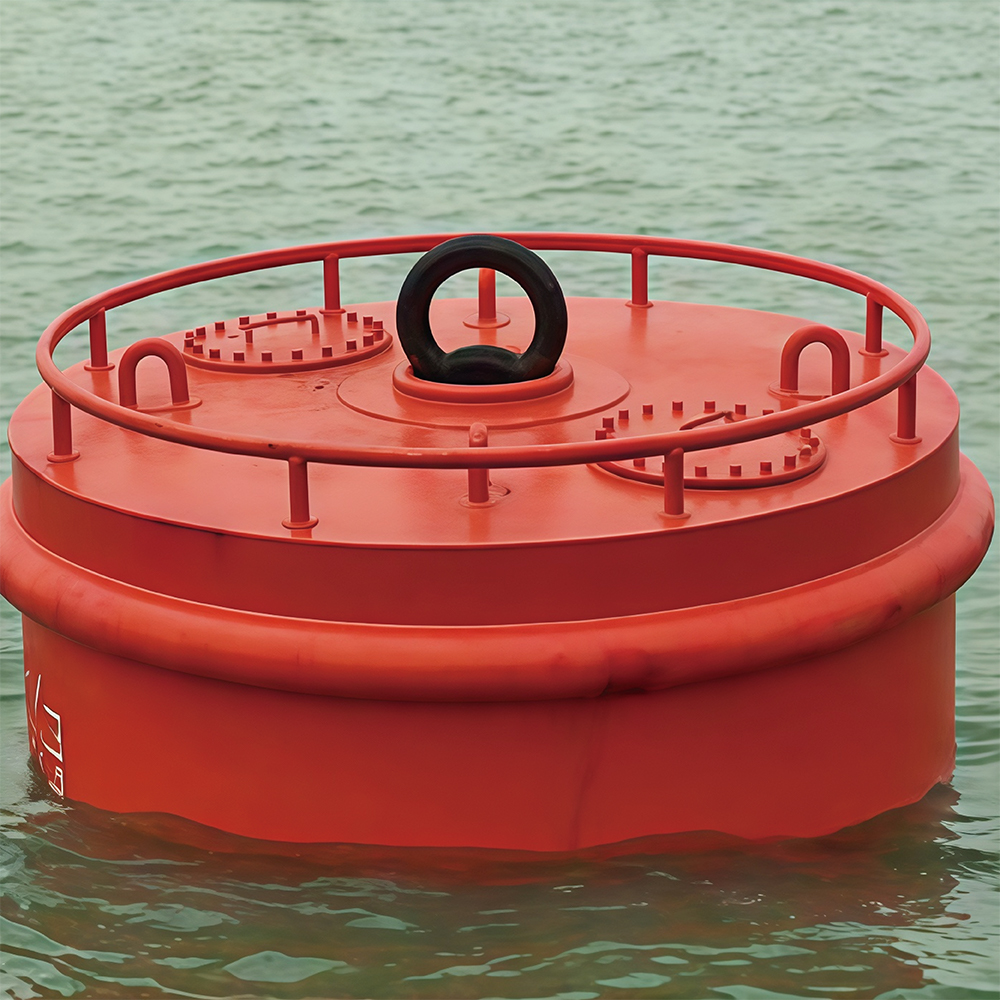

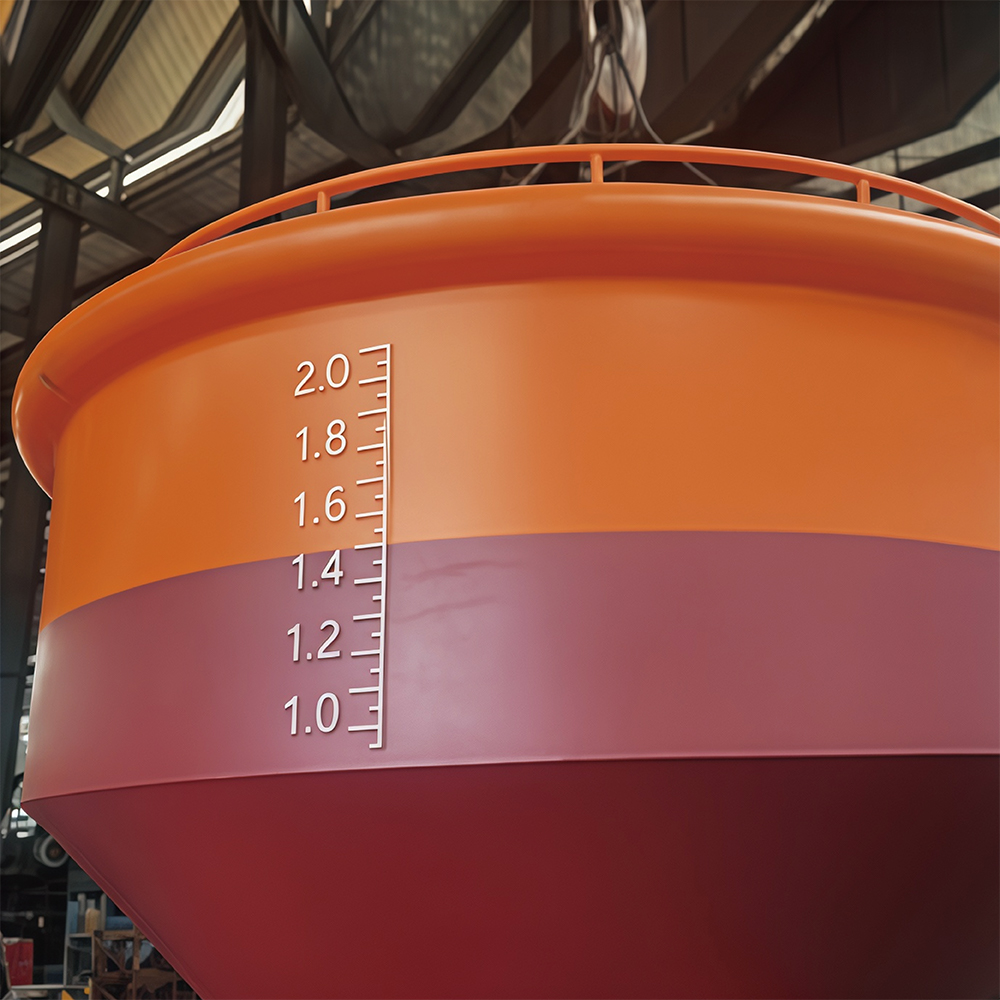

Site Photos
