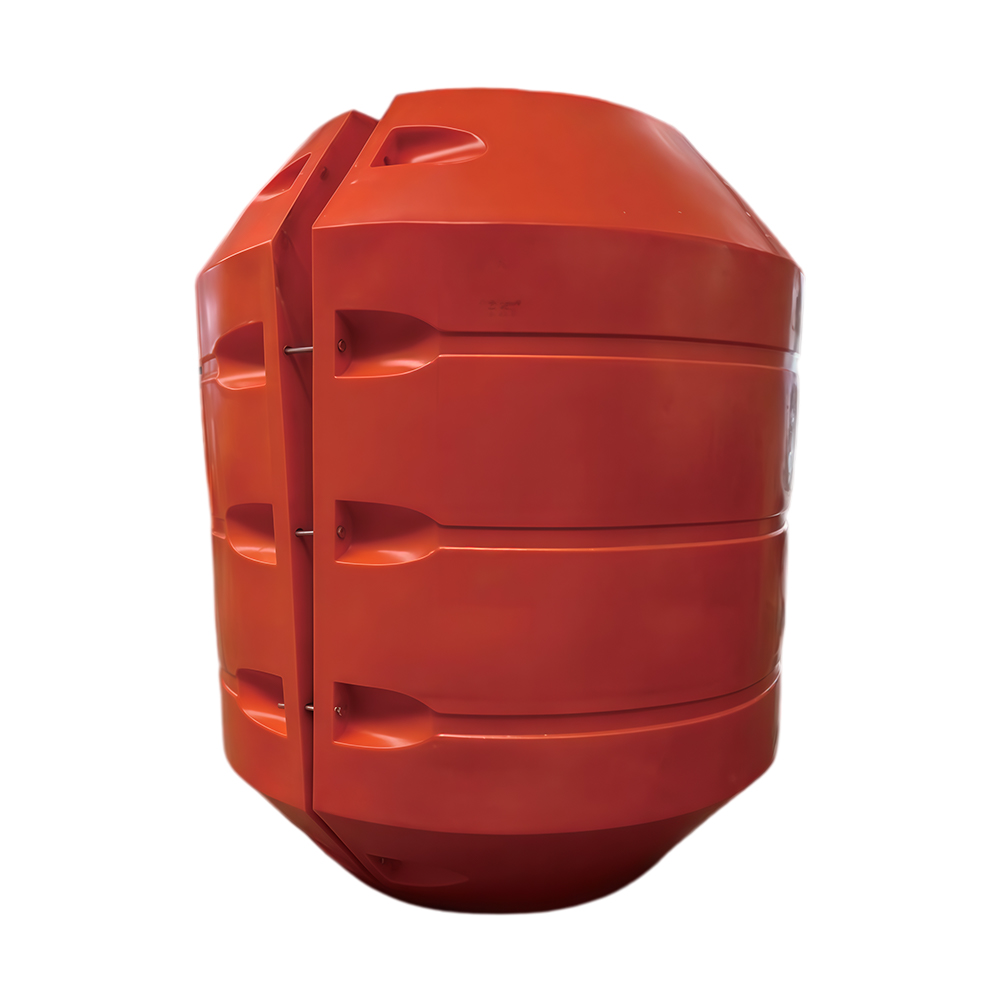

FT Polyethylene Dredging Pipe Floats
FT-series polyethylene pipe floats support floating dredging pipelines.
- Inner diameter: 160–1050 mm
- Outer diameter: 500–2100 mm
- Length: 800–2500 mm
- Shell thickness: 5–12 mm
Send Inquiry
Product Description
FT-series polyethylene floats for floating dredging pipelines.

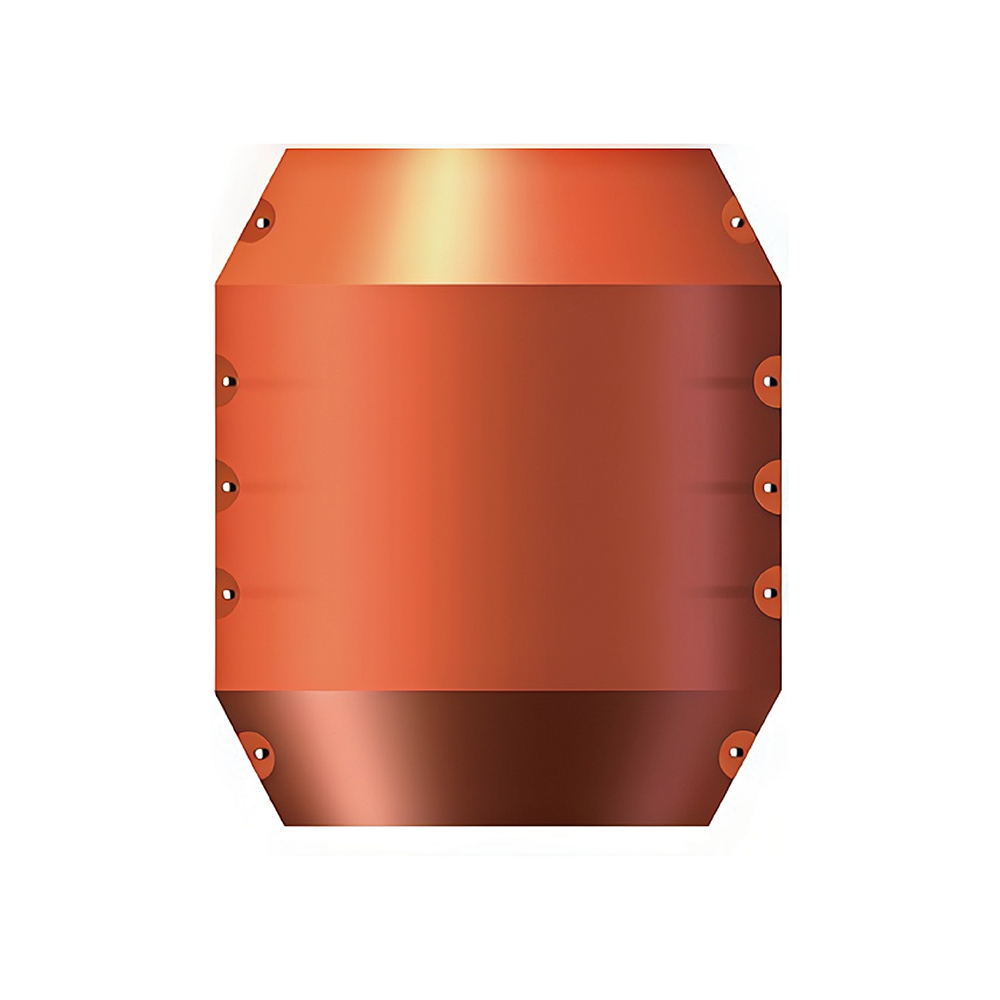

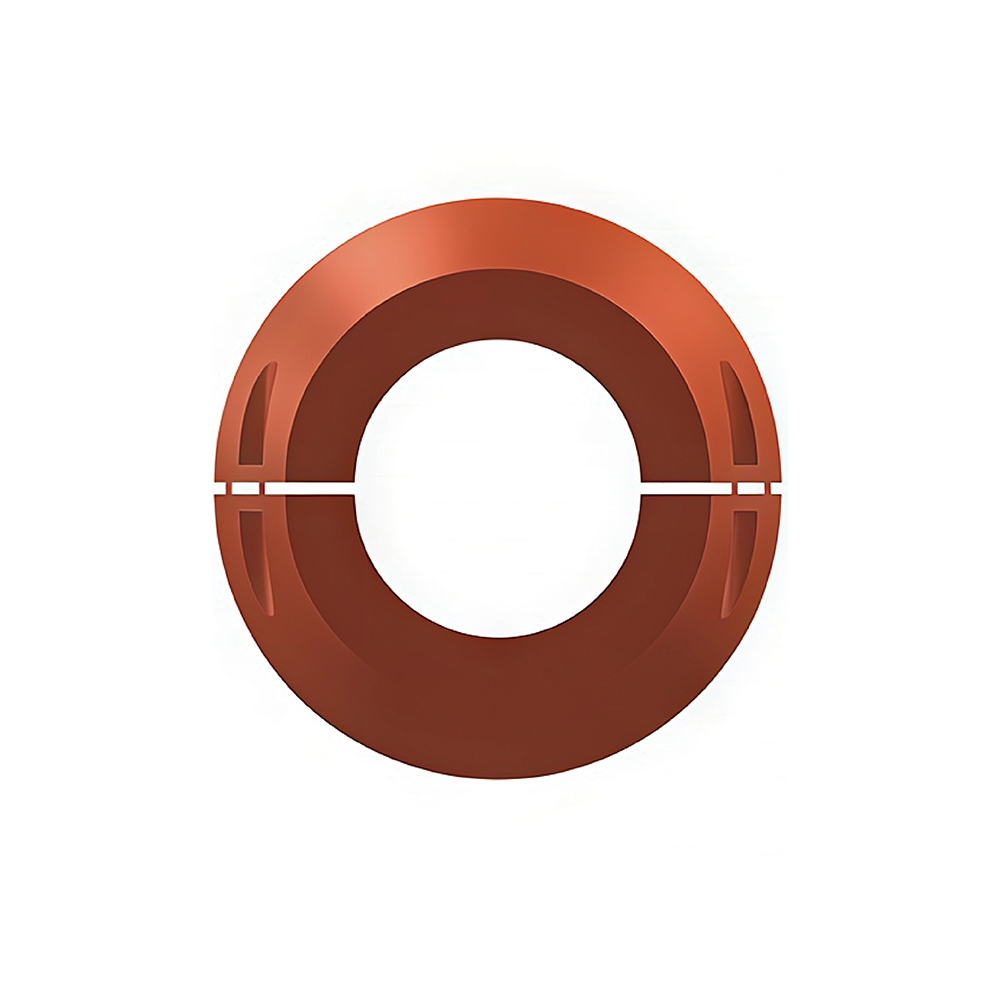

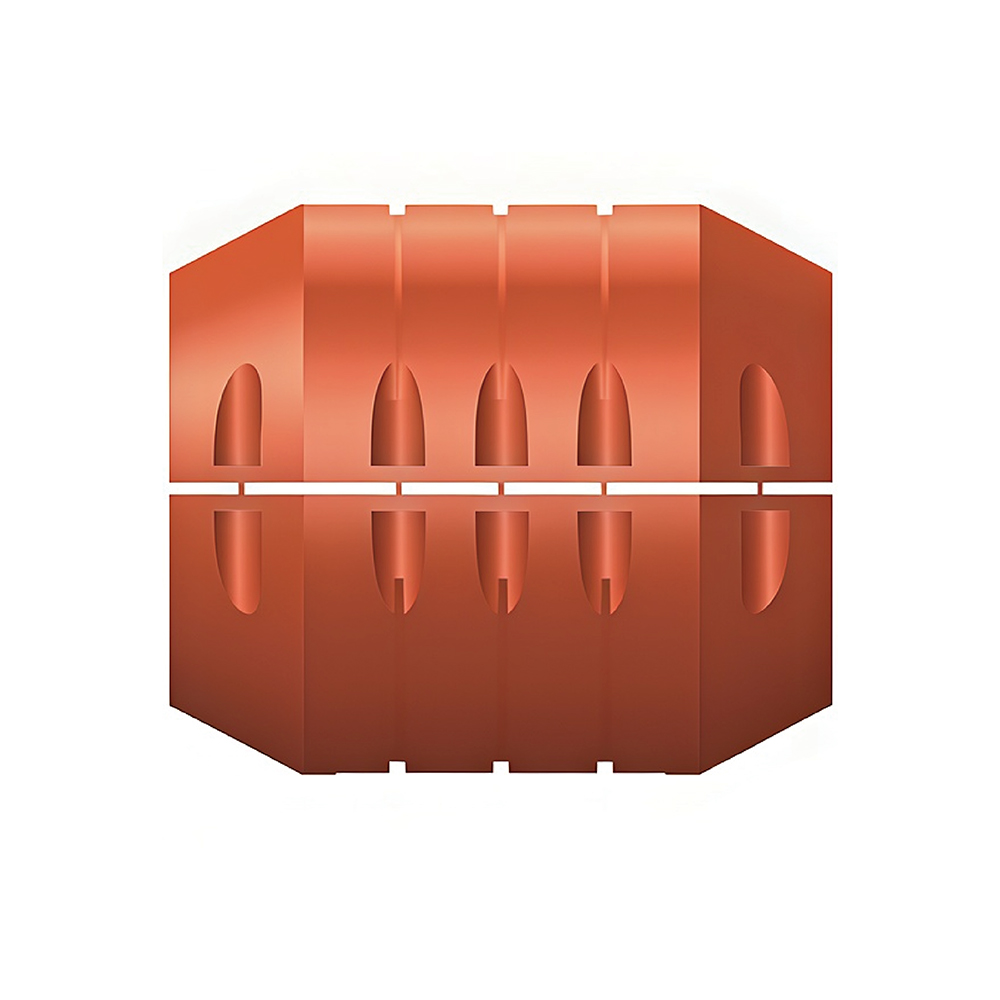

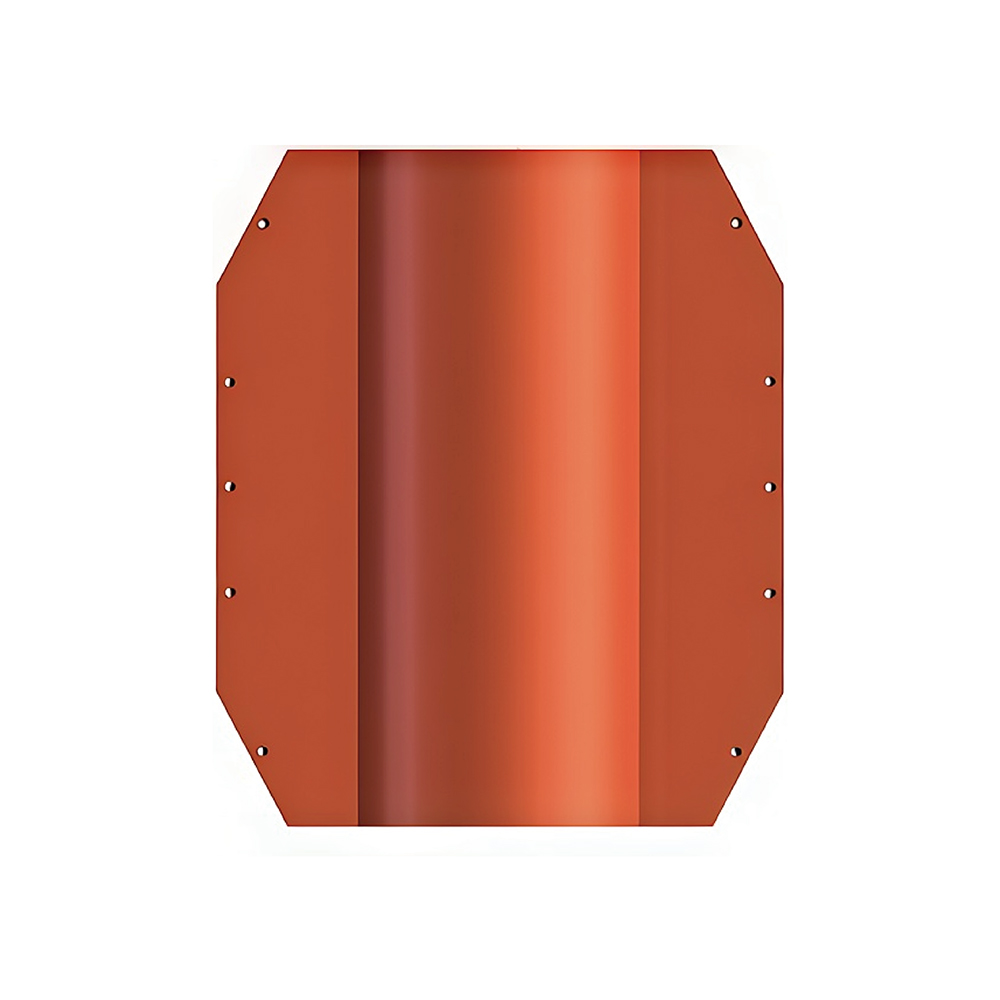

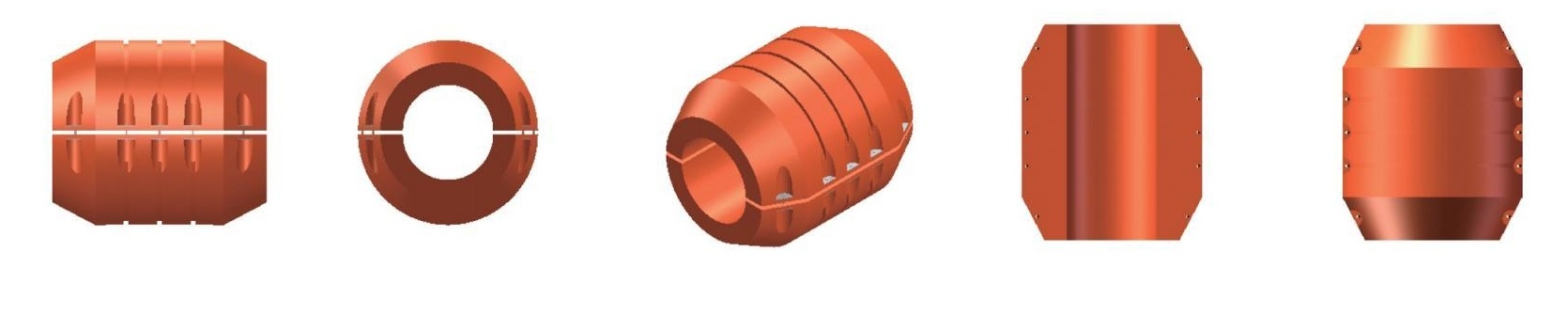

Split Float Examples
Model Specifications
Scroll horizontally to view all columns on a small screen.
| Model | ID (mm) | OD (mm) | L (mm) | Thickness (mm) | Net buoyancy (kg) |
|---|---|---|---|---|---|
| FT500*800 | 160/220 | 500 | 800 | 5 | 240 |
| FT700*900 | 280/360 | 700 | 900 | 5 | 450 |
| FT800*1000 | 315 | 800 | 1000 | 6 | 550 |
| FT1000*1000 | 325/350 | 1000 | 1000 | 6 | 650 |
| FT1100*1100 | 380/400 | 1100 | 1100 | 6 | 850 |
| FT1200*1200 | 430/450/500 | 1200 | 1200 | 7 | 1200 |
| FT1300*1300 | 480/500/560 | 1300 | 1300 | 7 | 1500 |
| FT1300*1500 | 530/560/630/610/660 | 1300 | 1500 | 8 | 1700 |
| FT1400*1500 | 560 | 1400 | 1500 | 8 | 1900 |
| FT1400*1600 | 630 | 1400 | 1600 | 8 | 2100 |
| FT1500*1850 | 650/670/680/720 | 1500 | 1850 | 9 | 2500 |
| FT1600*1900 | 730 | 1600 | 1900 | 9 | 2900 |
| FT1700*2000 | 780/810 | 1700 | 2000 | 9 | 2900 |
| FT1850*2100 | 840 | 1850 | 2100 | 10 | 3400 |
| FT2000*2400 | 900 | 2000 | 2400 | 12 | 4800 |
| FT2100*2500 | 950/1050 | 2100 | 2500 | 12 | 5000 |
Net buoyancy follows the catalogue’s kg notation; confirm whether values apply per float or per pair.
Shell & Internal Material Properties
| Shell property | Catalogue value | Internal material property | Catalogue value |
|---|---|---|---|
| Tensile strength | >13.1 MPa | Water absorption | <2 kg/m³ |
| Elongation at break | 11.1% | Breaking strength | 0.08–0.18 MPa |
| Impact strength | >32.4 kJ/m² | Elongation at break | 4–6% |
| Bending strength | >15.7 MPa | Compressive strength | 0.16–0.24 MPa |
| Dimensional & weight tolerance | ±5% | Heat resistance temperature | -60°C–+120°C |
Material reference values—not finished-product operating limits.

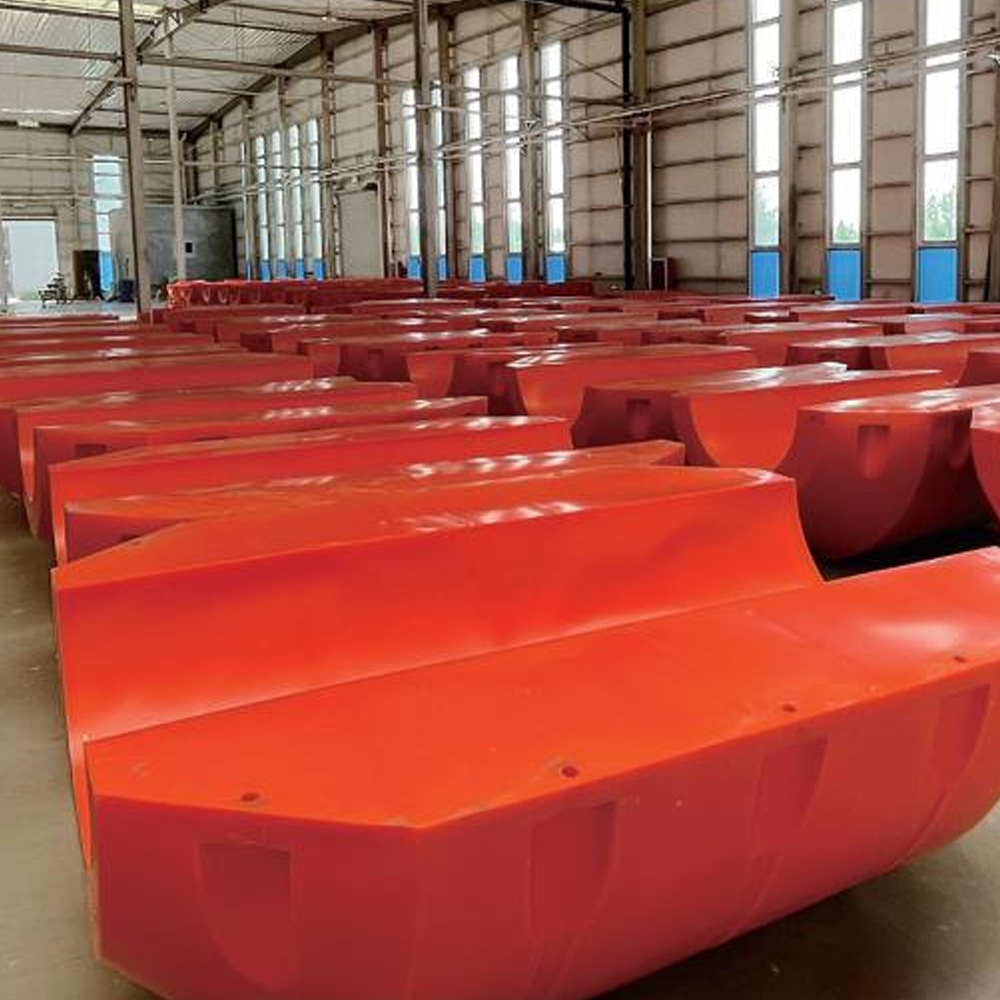

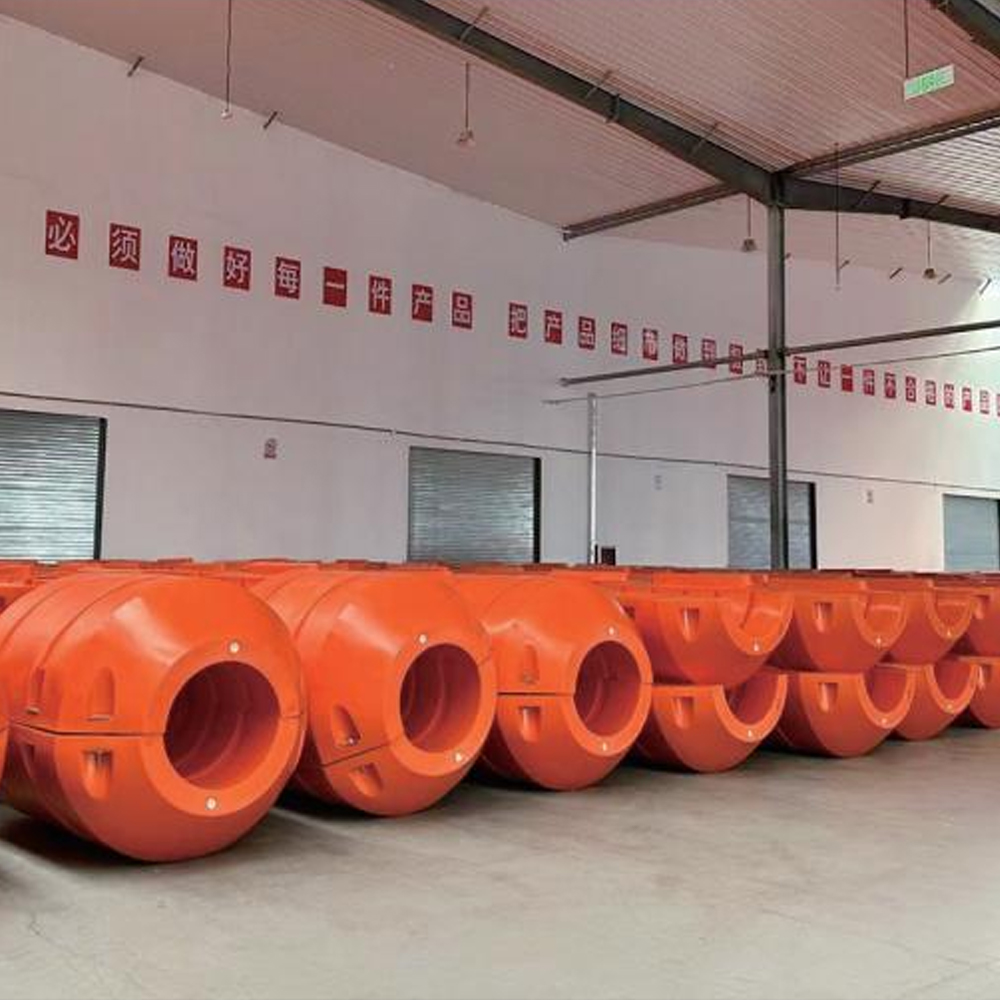

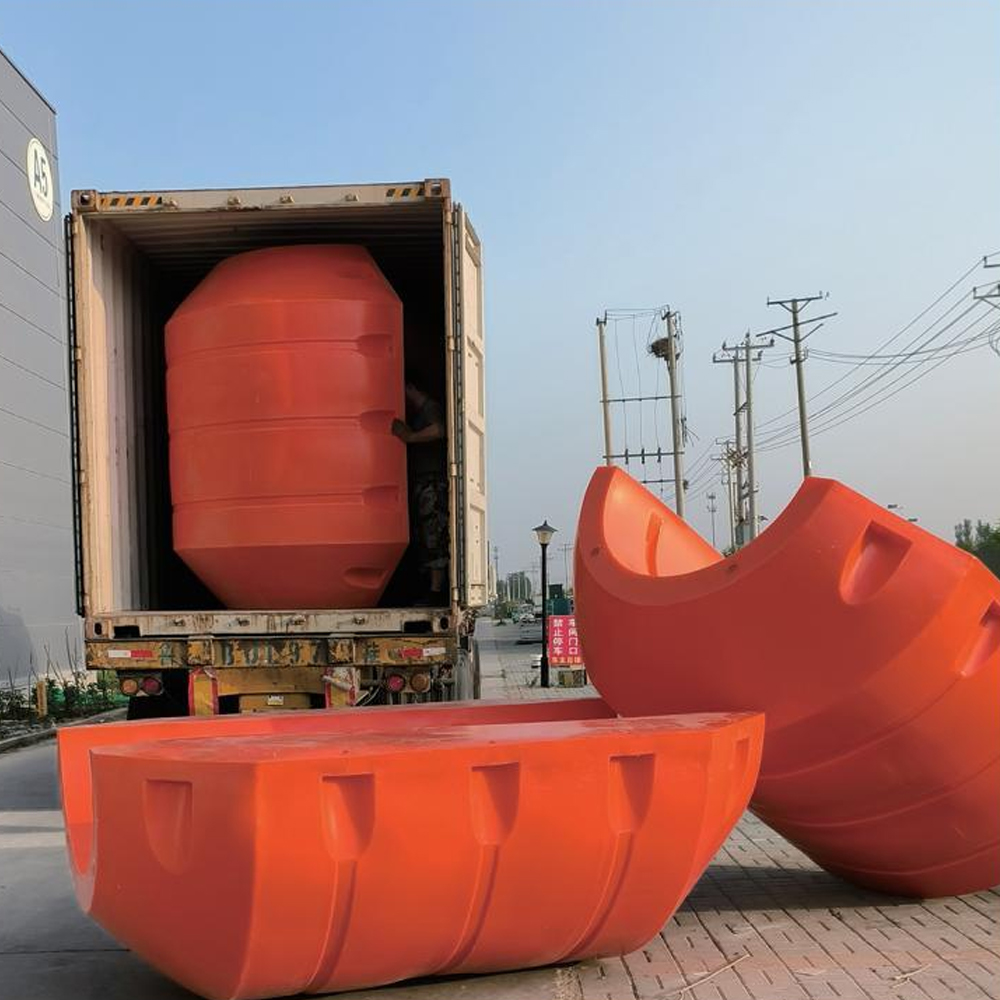

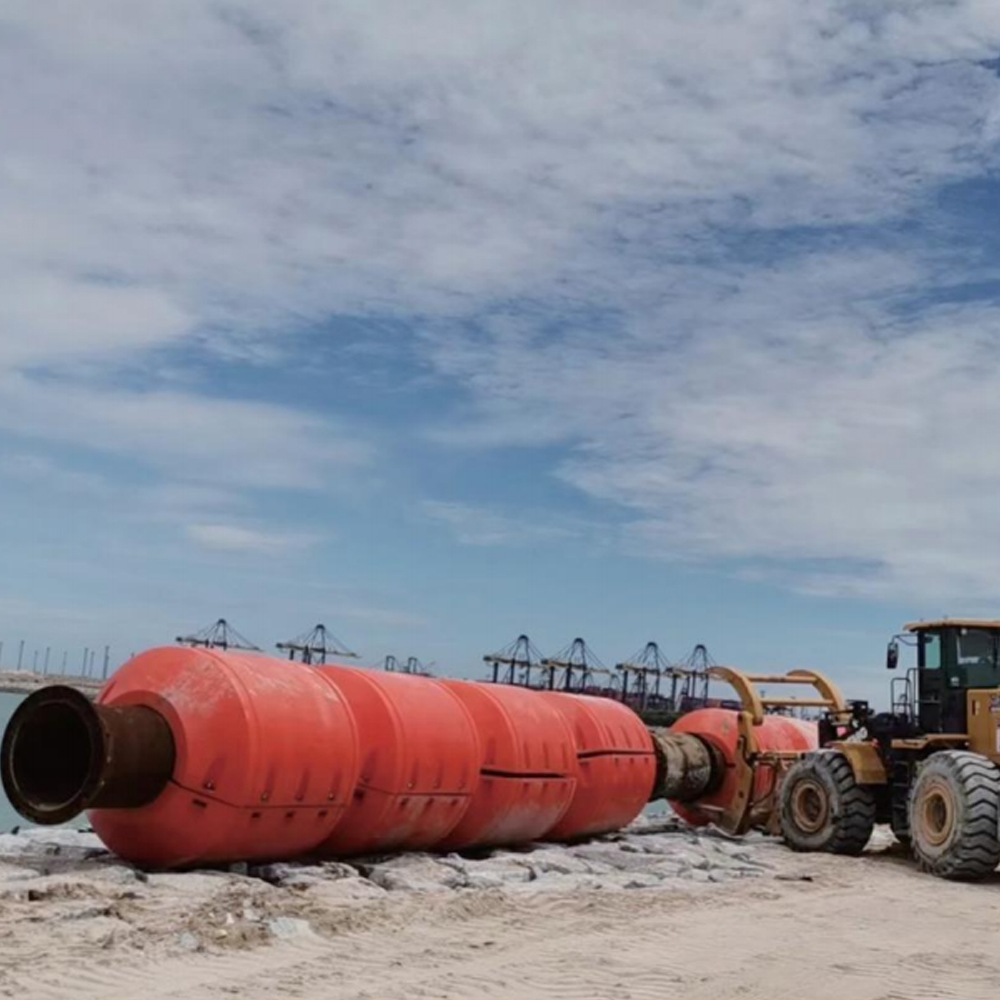

Site Photos
