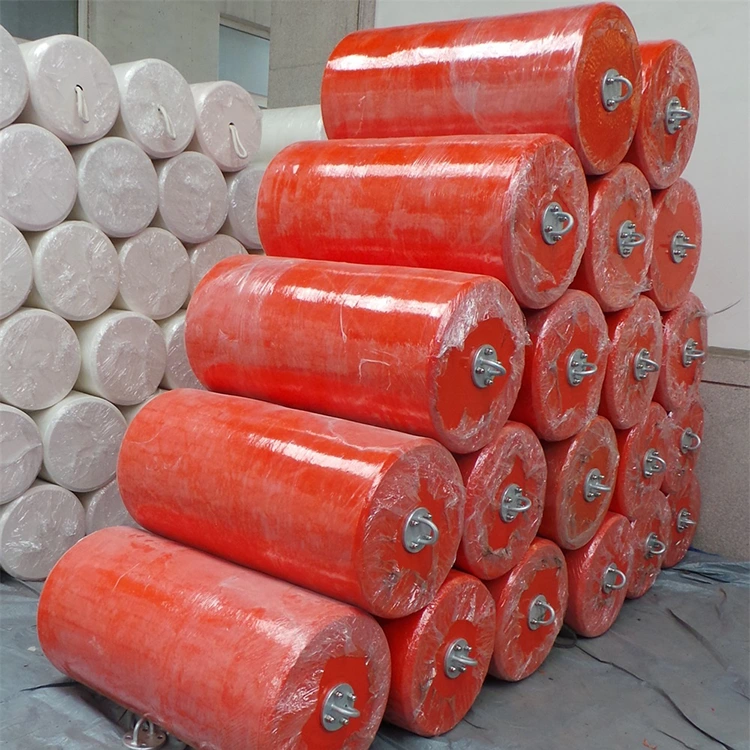

EVA Foam Filled Fender

EVA foam filled fender is also a kind of compressed fender, with polyurea as outside protective layer, internal with EVA efficient foam or PE foam as buffer medium;       its compression can absorb the ship's reaction force ,and the destructive effects on wharf and ships can be reduced.

The greatest feature of EVA foam filled fender is its floating performance, won't be affected by the tidal range; bright in color, customized colors and sizes are available according to customer's requirement; Compared with pneumatic rubber fender, EVA foam filled fender do not need to inflate when using, it's safe and maintenance-free. Connected with flange,easy to install, move and use; it's reaction force grows from a small beginning to a mighty, and has great energy absorption.

EVA foam filled fender is suitable for open type wharf, gravity type(pier type) port, especially the wharf with large tidal range and open seas ship-to-ship etc. Can be widely used for the wharf docks, ship boards etc. It's a new product that can replace pneumatic rubber fender.

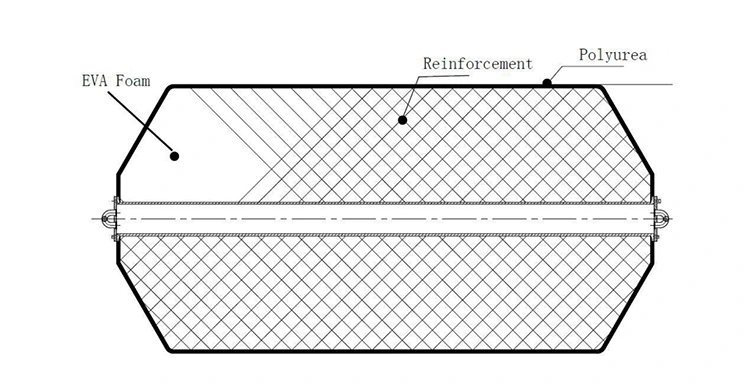

Construction Features

Andy Marine EVA foam fender uses light elastic foam as a bumping media.EVA foam fender is environment friendly and has high elastic properties allowing for energy absorption upon contact.The outside of foam fender is coated with polyurea which has anti seeping and anti-aging properties,improves the fenders life expectancy and economic value. Foam filled fender is soft,flexible and is highly resistant to cracking even under cold temperature.

Fully closed cell foam core

As core functional part of foam fender choose supreme PE/EVA material, provide fender advanced energy absorption and low reaction force, making the Foam Fender own superior performance in safety, durability and function.

Laminated foam core (Non-Winding)

Fender adopt foam lamination production technology. This structure can exert its maximum mechanical performance and ensure the superiority of energy absorption and reaction force.

Reinforced nylon tire cord skeleton layer

Multi-layer cords (Premium Quality) are winding during the polyurethane spraying process.This advanced skeleton process extremely durable to all types of weather, forces, and marine conditions.

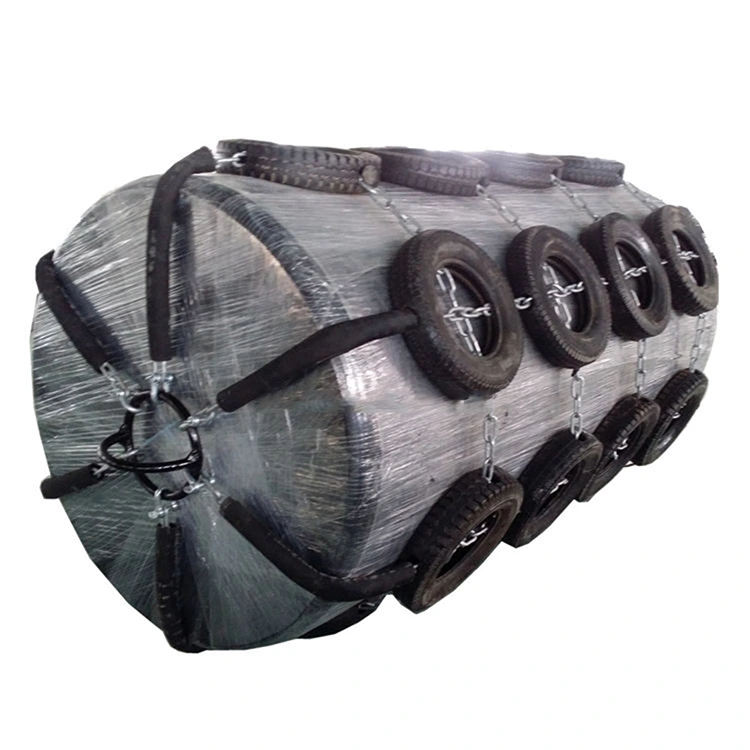

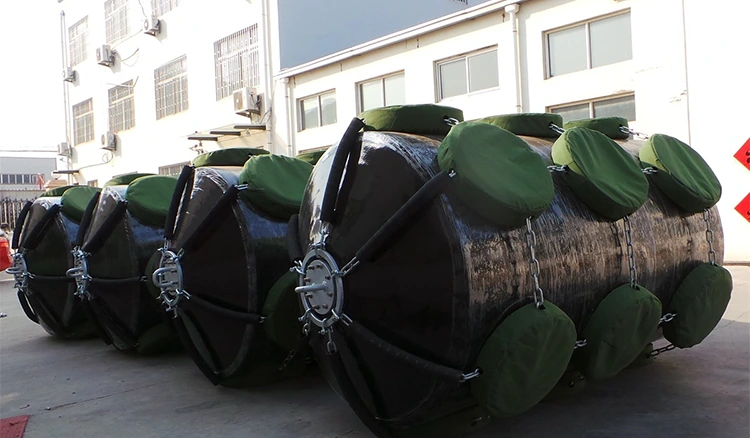

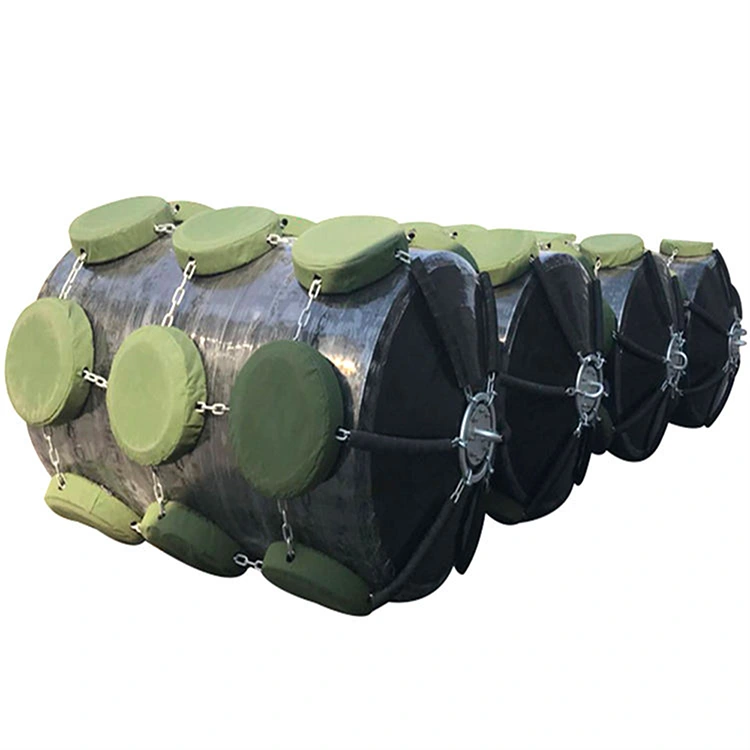

Enhanced Chain Tyre Net

The net is composed of high-quality truck/aircraft tires, high-strength hot-dip galvanized chains (wrapped in rubber sleeve), and the chain intersections are connected by reinforced shackles.

Black Technology Coating

Our exclusive research and development of Black Technology Materials (Non-marking Polyurethane) sprayed on the outside of foam core, which like wearing a strong and elastic armor to protects foam core permanently.

Heavy Duty Central Axis

Foam Fender equipped with the heavy-duty central axis as standard which plays the role of supporting and installing foam fenders.

High Strength End Flange

End flange is the important safety connection point which is made of superior-quality steel to ensure the safety and long-term application of foam fender hanging

360° Swivel End Fittings

The fender installation chain and fender flange are directly connected by 360° swivel ring and shackle, which equipped with strengthening accessories and made of advanced tensile strength steel.

EVA Foam Filled Fender Types

There are two types for Andy Marine EVA Foam Filled Fender:

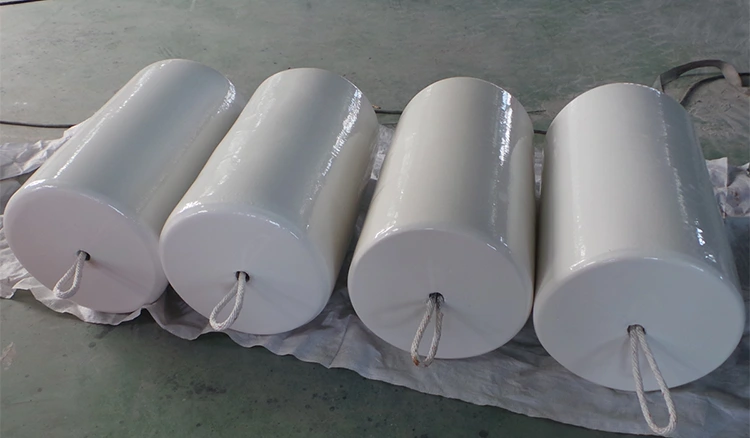

1) Rope Type Foam-filled Fenders

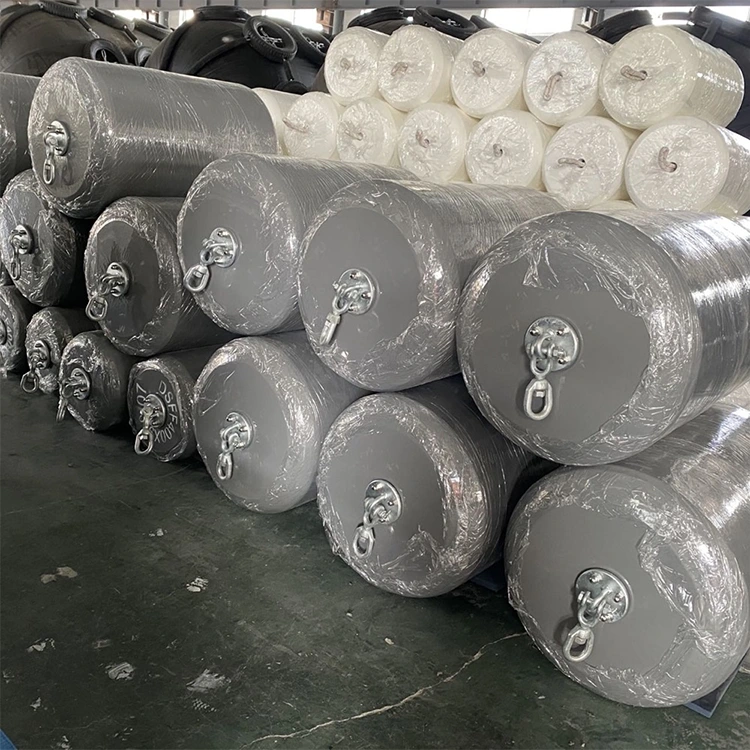

2) Flange Type Foam-filled Fenders

EVA Foam Filled Fender Material Details :

1) Modified closed cell EVA with density 110~130kgs/m³.

2) The cord fabric is used for the frame with strength 313N per single line, winding the cord and spray polyurea, no delaminating, strong durability.

3) Spraying polyurea as a coat, anti-aging& anti corrosion.

4) All hardware that used on fender body.

Because of the multiformity of applications, Andy Marine can adjust his designs to meet the clients various requirements, such as net variations, different colors and various fittings.

EVA Foam Filled Fender Advantages

• Colorful

• Unsinkable design

• Can as float rod on the sea

• Flexible,cost-saving

• Remains fully functional even if skin is punctured

• Easy to install,move and use. Low maintenance.

EVA Foam Filled Fender Size

Application of Our EVA Foam Filled Fender

FAQs About EVA Foam Filled Fender

1) What applications are EVA foam filled fender used for?

EVA foam filled fenders are versatile. They are suitable for almost all marine applications. Those include use with oil tanks, general cargo vessels, ferry cruises, workboats, container ships, and more. Their strong design makes them ideal for protecting ships. They also protect ocean platforms and offshore facilities. They are also effective in protecting wharves, yachts, and other marine assets.

2) Do you offer custom EVA foam filled fender solutions?

Yes, we provide OEM services, which means we can make special foam as per client requirements. We can do that if you have specific needs or want your fenders to look a certain way with your logo or brand name on them! Customization is integral to us because it lets us create what clients need. So, you’ll always get the perfect fender that suits you best.

3) What are the features and advantages of floating EVA foam filled fenders?

The closed-cell foam structure ensures unsinkability, even if punctured. This remains true even if punctured. They are constructed with a high energy absorption closed cell foam core. Additionally, they feature a tough outer skin reinforced with nylon mesh. Moreover, they offer total buoyancy, allowing for flexible installation.
